ROWE recibió uno de los premios más altos para productos innovadores por un jurado experto independiente.

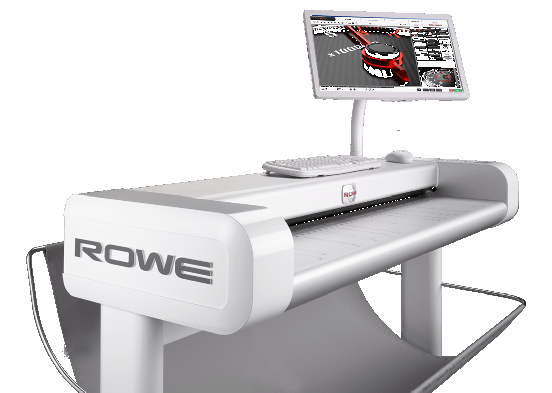

El escáner de gran formato ROWE Scan 650i con sus 6 modelos y tecnología a prueba de futuro es sinónimo de innovación increíble, productividad y numerosas patentes. Eche un vistazo a este folleto para conocer los aspectos técnicos más destacados y las características únicas.
| Features | Description |
|---|---|
| Scan width / Original thickness / Scan length | |
| Maximum scan width | 44" (1118 mm) / maximum original width 47.4" (1204 mm) 55" (1397 mm) / maximum original width 63,2" (1606 mm) 60" (1524 mm) / maximum original width 63,2" (1606 mm) |
| Maximum original thickness | Up to 2 mm (0.08") with flexible materials |
| Scan length | Not limitied by the scanner |
| Maximum original thickness HA | Maximum media thickness up to 30 mm (1.18"). The electrically driven ROWE HEIGHT ADJUSTMENT (HA) works fully automatically at the simple push of a key |
| Scan quality | |
| Optical resolution | 2400 x 1200 dpi |
| Maximum resolution | 9600 dpi |
| Scan accuracy | 0,1% +/- 1 Pixel |
| Color depth | 48-bit color 16-bit greyscale |
| Color space | Not only the standard sRGBcolor space but also user defined color spaces like Adobe RGB or Device RGB are supported |
| ROWE SELECTED TRUE LIGHT | Lighting of originals is exceptionally homogenous. Optimal alignment of the lighting angle to the reading unit. |
| ROWE DOUBLE ROW LENSE | Significantly higher light throughput |
| ROWE DYNAMIC STITCHING - RDS (patent) | Controls continuously the scanned document data of each sensor and sets them together in real time. Any deviations that may occur are corrected automatically. |
| ROWE PRO LOGIC | Scan once for optimal results. Automatic process for the filtering of dirt/background and the highlighting of image information, ideal for originals with poor contrast. |
| Ergonomics | |
| Automatic workflow (6 freely programmable Hot Keys on the control panel of the scanner) | All functions of the ROWE ScanManager can be stored. Retrievable with a click. The number of favourites (personalised settings, e.g. defined scan profiles) is not limited in the ROWE ScanManager. You can also protect the favourites with a password. |
| Simple replacement of scan glass | Removal of the scan glass is carried out without tools – simply, quickly and absolutely ergonomically! |
| ROWE SAFE GUARD | Newly developed media transport technology which ensures that even old, torn or extremely wavy originals are transported and protected in the best possible way. |
| ROWE SAFE DRIVE (patent) | - Up to 500 % longer life-cycle of the scan glass compared to standard scanners without ROWE SAFE DRIVE - Safe transport of fragile originals - Reduce the scan speed |
| Scanning face-up | Makes an ergonomic handling of the originals possible – you see what you scan. |
| Active output | Driven transport rollers at the rear guarantee safe output of the documents, no jam in the scanner also during operation without a stand or in connection with a scan table. |
| Productivity / Interface | |
| Color (24-bit RGB) and 8-bit indexed Color at 200 dpi (Turbo)* | Meters per minute / Inches per second |
| Black and white (1-bit) and greyscale (8-bit) at 200 dpi (Turbo)* | Meters per minute / Inches per second |
| DOCUMENT IMPROVEMENT SYSTEM - DIS | All changes can be done after scanning. No rescanning required. Any changes made will be immediately displayed in the viewer. |
| Automatic width recognition “On the fly“ (patented) | The width of the original is precisely determined during the scanning process. No forward and backward movement for recognition of the document width. |
| Dynamic width recognition (patented) | Automatic and correct recognition of the document width, also when damaged, e.g. ripped corners |
| No warm-up time | Immediately operational (also for color) |
| ROWE EFFICIENT SCANNING - RES (patent) | High performance real time width recognition and data transfer process |
| SuperSpeed USB 3 + RES | Data throughput up to 1000 % higher compared to HighSpeed USB 2 |
| HightSpeed USB 2 + RES | Data throughput up to 200 % higher compared to HighSpeed USB 2 |
| DIN A0, color (24-bit RGB), incl. automatic width recognition, SuperSpeed USB 3 with RES technology | Documents per hour,** at 300 x 300 dpi |
| DIN A0, black/white (1-bit) and greyscale (8-bit), incl. automatic width recognition, SuperSpeed USB 3 with RES technology | Documents per hour,** at 300 x 300 dpi Documents per hour,** at 600 x 600 dpi |
| Power connection | 100 - 240 V 50/60 Hz |
| Power consumption | Operating / energy saving mode with programmable timer, exceeds the requirements of the Energy Star |
| Weight | Wide format scanner 44" Wide format scanner 55" Wide format scanner 60" |
| Weight with ROWE HEIGHT ADJUSTMENT | Wide format scanner 44" HA Wide format scanner 55" HA Wide format scanner 60" HA |
| Dimension | Large format scanner 44" depth x width x height Large format scanner 55" depth x width x height Large format scanner 60" depth x width x height |
| Dimension with ROWE HEIGHT ADJUSTMENT | Wide format scanner 44" HA depth x width x height Wide format scanner 55" HA depth x width x height Wide format scanner 60" HA depth x width x height |
| Quality seals / certificates | RoHS, ENERGY STAR, CE, CCC, UL, cUL, CB, FCC Part 15 Class B, EAC, BSMI, BIS |
