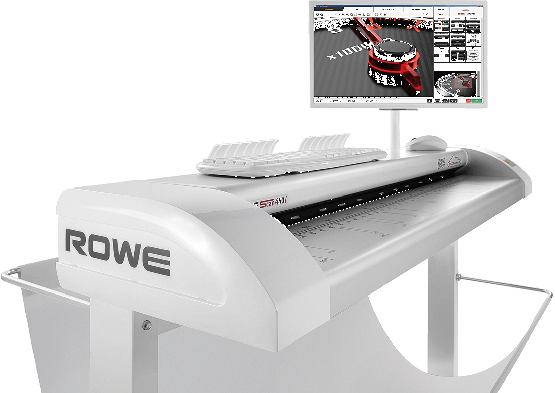

ROWE ha cumplido una visión con su nuevo ROWE Scan 450i: Desarrollo de una nueva clase de escáneres de alta tecnología "Made in Germany" con innovaciones innovadoras.
El ROWE Scan 450i tiene tres modelos con anchos de escaneo de 24 ", 36" y 44 ". El equipo estándar para todos los escáneres de gran formato es SuperSpeed USB 3.0 + RES, ROWE ScanCloud y ROWE ScanMatrix +, que es una tecnología única en todo el mundo. Su ventaja: Escaneo con el proceso patentado ROWE DYNAMIC STITCHING, transformación completamente automática de originales con escaso contraste en escaneos perfectos debido a la tecnología de mejora de imagen ROWE PRO LOGIC y colores brillantes y naturales como resultado de ROWE SELECTED TRUE LIGHT.
También único: un nuevo proceso que permite escanear y al mismo tiempo reconocer el ancho del original, todo en un proceso, así como reconocer independientemente las esquinas dañadas o rasgadas en los originales. El resultado es una productividad excelente y al mismo tiempo protege los documentos.
De particular importancia para los clientes de ROWE: los mejores resultados en cuanto a modularidad, costo y entorno. Gracias a la tecnología patentada ROWE SAFE DRIVE, el cristal de escaneo tiene un ciclo de vida de hasta un 500% más que los escáneres de formato ancho estándar. Un consumo de energía de menos del 0,4% en modo de ahorro de energía también protege el medio ambiente. Experimenta la fascinación de ROWE. Simplemente haga una cita con el distribuidor autorizado en su área.
| Features | Description |
|---|---|
| Scan width / Original thickness / Scan length | |
| Maximum scan width | 24" (622 mm) / maximum original width 27.4" (696 mm) 36" (927 mm) / maximum original width 39.4" (1001 mm) 44" (1130 mm) / maximum original width 47.4" (1204 mm) |
| Maximum original thickness | Up to 2 mm (0.08") with flexible materials |
| Scan length | Not limitied by the scanner |
| Scan quality | |
| Optical resolution | 2400 x 1200 dpi |
| Maximum resolution | 9600 x 9600 dpi |
| Scan accuracy | 0,1% +/- 1 Pixel |
| Color depth | 48-bit color 16-bit greyscale |
| Color space | Not only the standard sRGBcolor space but also user defined color spaces like Adobe RGB or Device RGB are supported |
| ROWE SELECTED TRUE LIGHT | Lighting of originals is exceptionally homogenous. Optimal alignment of the lighting angle to the reading unit. |
| ROWE DOUBLE ROW LENSE | Significantly higher light throughput |
| ROWE DYNAMIC STITCHING - RDS (patent) | Controls continuously the scanned document data of each sensor and sets them together in real time. Any deviations that may occur are corrected automatically. |
| ROWE PRO LOGIC | Scan once for optimal results. Automatic process for the filtering of dirt/background and the highlighting of image information, ideal for originals with poor contrast. |
| Ergonomics | |
| Automatic workflow (4 freely programmable Hot Keys on the control panel of the scanner) | All functions of the ROWE ScanManager can be stored. Retrievable with a click. The number of favourites (personalised settings, e.g. defined scan profiles) is not limited in the ROWE ScanManager. You can also protect the favourites with a password. |
| Simple replacement of scan glass | Removal of the scan glass is carried out without tools – simply, quickly and absolutely ergonomically! |
| ROWE SAFE DRIVE (patent) | - Up to 500 % longer life-cycle of the scan glass compared to standard scanners without ROWE SAFE DRIVE - Safe transport of fragile originals |
| Scanning face-up | Makes an ergonomic handling of the originals possible – you see what you scan. |
| Active output | Driven transport rollers at the rear guarantee safe output of the documents, no jam in the scanner also during operation without a stand or in connection with a scan table. |
| Productivity / Interface | |
| Color (24-bit RGB) and 8-bit indexed Color at 400 dpi (Turbo)* | Meters per minute / Inches per second |
| Black and white (1-bit) and greyscale (8-bit) at 400 dpi (Turbo)* | Meters per minute / Inches per second |
| DOCUMENT IMPROVEMENT SYSTEM - DIS | All changes can be done after scanning. No rescanning required. Any changes made will be immediately displayed in the viewer. |
| Automatic width recognition “On the fly“ (patented) | The width of the original is precisely determined during the scanning process. No forward and backward movement for recognition of the document width. |
| Dynamic width recognition (patented) | Automatic and correct recognition of the document width, also when damaged, e.g. ripped corners |
| No warm-up time | Immediately operational (also for color) |
| ROWE EFFICIENT SCANNING - RES (patent) | High performance real time width recognition and data transfer process |
| SuperSpeed USB 3.0 + RES | Data throughput up to 1000 % higher compared to HighSpeed USB 2.0 |
| HightSpeed USB 2.0 + RES | Data throughput up to 200 % higher compared to HighSpeed USB 2.0 |
| DIN A0, color (24-bit RGB), incl. automatic width recognition, SuperSpeed USB 3.0 with RES technology | Documents per hour,** at 300 x 300 dpi |
| DIN A0, black/white (1-bit) and greyscale (8-bit), incl. automatic width recognition, SuperSpeed USB 3.0 with RES technology | Documents per hour,** at 300 x 300 dpi Documents per hour,** at 600 x 600 dpi |
| Power connection | 100 - 240 V 50/60 Hz |
| Power consumption | Operating / energy saving mode with programmable timer, exceeds the requirements of the Energy Star |
| Weight | Large format scanner 24" Large format scanner 36" Large format scanner 44" |
| Dimension | Large format scanner 24" depth x width x height Large format scanner 36" depth x width x height Large format scanner 44" depth x width x height |
| Quality seals / certificates | RoHS, ENERGY STAR, CE, CCC, UL, cUL, CB, FCC Part 15 Class B, EAC, BSMI |
